Aerodynamics

# Stability Concepts

The aircraft's response to momentary disturbance is associated with its

inherent degree of stability built in by the designer, in each of the three axes,

and occurring without any reaction from the pilot.

There is another condition affecting flight, which is the aircraft's state of trim

or equilibrium (where the net sum of all forces equals zero).

Some aircraft can be trimmed by the pilot to fly 'hands off' for straight and

level flight, for climb or for descent.

Free flight models generally have to rely on the state of trim built in by the

designer and adjusted by the rigger, while the remote controlled models have

some form of trim devices which are adjustable during the flight.

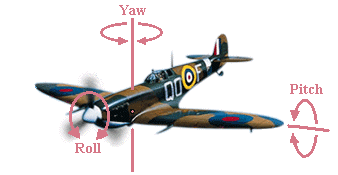

An aircraft's stability is expressed in relation to each axis:

lateral stability (stability in roll), directional stability (stability in yaw)

and longitudinal stability (stability in pitch).

Lateral and directional stability are inter-dependent.

Stability may be defined as follows:

- Positive stability - tends to return to original condition after a disturbance.

- Negative stability - tends to increase the disturbance.

- Neutral stability - remains at the new condition.

- Static stability - refers to the aircraft's initial response to a disturbance.

- Dynamic stability - refers to the aircraft response over time to a disturbance,

which is related to how fast or how slow it responds to a disturbance.

So, a static stable aircraft may be dynamically unstable.

Dynamic instability may be prevented by an even distribution of weight inside the

fuselage, avoiding too much weight concentration at the extremities or at the CG.

Also, control surfaces' max throws may affect the flight stability, since a too much

control throw may cause dynamic instability, e.g. Pilot Induced Oscillations (PIO).

A totally stable aircraft will return, more or less immediately, to its trimmed

state without pilot intervention.

However, such an aircraft is rare and not much desirable. We usually want an

aircraft just to be reasonably stable so it is easy to fly.

If it is too stable, it tends to be sluggish in manoeuvring, exhibiting too slow

response on the controls.

Too much instability is also an undesirable characteristic, except where an

extremely manoeuvrable aircraft is needed and the instability can be continually

corrected by on-board 'fly-by-wire' computers rather than the pilot, such as a

supersonic air superiority fighter.

Lateral stability is achieved through dihedral, sweepback, keel effect and

proper distribution of weight.

The dihedral angle is the angle that each wing makes with the horizontal (see

Wing Geometry).

If a disturbance causes one wing to drop, the lower wing will receive more lift

and the aircraft will roll back into the horizontal level.

A sweptback wing is one in which the leading edge slopes backward.

When a disturbance causes an aircraft with sweepback to slip or drop a wing,

the low wing presents its leading edge at an angle more perpendicular to the

relative airflow. As a result, the low wing acquires more lift and rises, restoring

the aircraft to its original flight attitude.

The keel effect occurs with high wing aircraft. These are laterally stable simply

because the wings are attached in a high position on the fuselage, making the

fuselage behave like a keel.

When the aircraft is disturbed and one wing dips, the fuselage weight acts like

a pendulum returning the aircraft to the horizontal level.

The tail fin determines the directional stability.

If a gust of wind strikes the aircraft from the right it will be in a slip and the fin

will get an angle of attack causing the aircraft to yaw until the slip is eliminated.

Longitudinal stability depends on the location of the centre of gravity, the

stabiliser area and how far the stabiliser is placed from the main wing.

Most aircraft would be completely unstable without the horizontal stabiliser.

Non-symmetrical cambered airfoils have a higher lift coefficient, but they also

have a negative pitching moment (Cm) tending to pitch nose-down, and thus

being statically unstable, which requires the counter moment produced by the

horizontal stabiliser to get adequate longitudinal stability.

The stabiliser provides the same function in longitudinal stability as the fin does

in directional stability.

Symmetrical (zero camber) airfoils have normally a zero pitching moment,

resulting in neutral stability, which means the aircraft goes wherever you point it.

Reflexed airfoils (with trailing edge bent up) have a positive pitching moment

making them naturally stable, they are often used with flying wings (without the

horizontal stabiliser).

It is of crucial importance that the aircraft's Centre of Gravity (CG) is located

at the right point, so that a stable and controllable flight can be achieved.

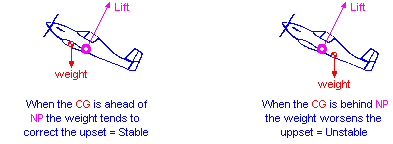

In order to achieve a good longitudinal stability, the CG should be ahead of the

Neutral Point (NP), which is the Aerodynamic Centre of the whole aircraft.

NP is the position through which all the net lift increments act for a change in

angle of attack.

The major contributors are the main wing, stabiliser surfaces and fuselage.

The bigger the stabiliser area in relationship to the wing area and the longer

the tail moment arm relative to the wing chord, the farther aft the NP will be and

the farther aft the CG may be, provided it's kept ahead of the NP for stability.

The angle of the fuselage to the direction of flight affects its drag, but has little

effect on the pitch trim unless both the projected area of the fuselage and its

angle to the direction of flight are quite large.

A tail-heavy aircraft will be more unstable and susceptible to stall at low speed

e. g. during the landing approach.

A nose-heavy aircraft will be more difficult to takeoff from the ground and to

gain altitude and will tend to drop its nose when the throttle is reduced. It also

requires higher speed in order to land safely.

The angle between the wing chord line and the stabiliser chord line is called

the Longitudinal Dihedral (LD) or decalage.

For a given centre of gravity, there is a LD angle that results in a certain

trimmed flight speed and pitch attitude.

If the LD angle is increased the plane will take on a more nose up pitch attitude,

whereas with a decreased LD angle the plane will take on a more nose down

pitch attitude.

There is also the Angle of Incidence, which is the angle of a flying surface

related to a common reference line drawn by the designer along the fuselage.

The designer might want this reference line to be level when the plane is flying

at level flight or when the fuselage is in it's lowest drag position.

The purpose of the reference line is to make it easier to set up the relationships

among the thrust, the wing and the stabiliser incidence angles.

Thus, the Longitudinal Dihedral and the Angle of Incidence are interdependent.

Longitudinal stability is also improved if the stabiliser is situated so that it lies

outside the influence of the main wing downwash.

Stabilisers are therefore often staggered and mounted at a different height in

order to improve their stabilising effectiveness.

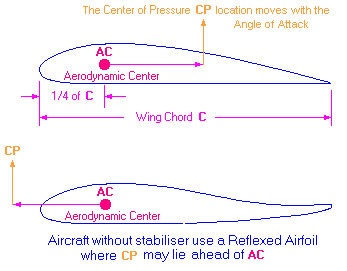

It has been found both experimentally and theoretically that, if the aerodynamic

force is applied at a location 1/4 from the leading edge of a rectangular wing

at subsonic speed, the magnitude of the aerodynamic moment remains nearly

constant even when the angle of attack changes.

This location is called the wing's Aerodynamic Centre AC.

(At supersonic speed, the aerodynamic centre is near 1/2 of the chord).

In order to obtain a good Longitudinal Stability the Centre of Gravity CG

should be close to the main wings' Aerodynamic Centre AC.

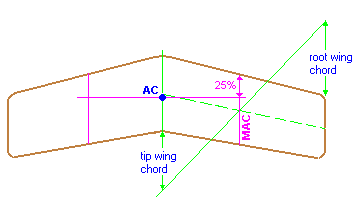

For wings with other than rectangular form (such as triangular, trapezoidal,

compound, etc.) we have to find the Mean Aerodynamic Chord MAC, which

is the average for the whole wing. See the drawings below:

For a delta wing the CG should be located 10% ahead of the geometrically

calculated AC point as shown above.

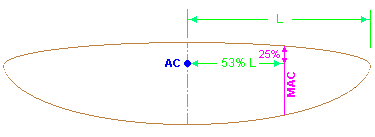

The MAC of an elliptical wing is 85% of the root chord and is located at 53% of

the half wingspan from the root chord.

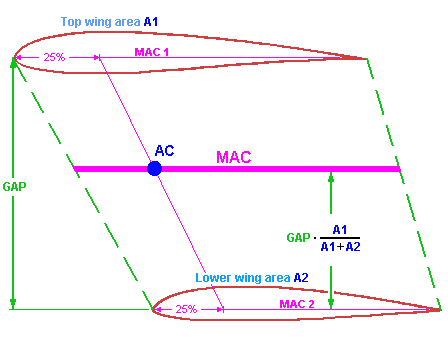

The AC location for biplanes with positive stagger (top wing ahead of the bottom

wing), is found according to the drawing below.

For conventional designs (with main wing and horizontal stab) the CG location

range is usually between 28% and 33% from the leading edge of the main

wing's MAC, which means between about 5% and 15% ahead of the aircraft's

Neutral Point NP.

This is called the Static Margin, which is expressed as a percentage of MAC.

When the static margin is zero (CG coincident with NP) the aircraft is considered

"neutrally stable".

However, for conventional designs the static margin should be between 5% and

15% of the MAC ahead of the NP.

The CG location as described above is pretty close to the wing's Aerodynamic

Center AC because the lift due to the horizontal stab has only a slightly effect on

the conventional R/C models.

However, those figures may vary with other designs, as the NP location depends

on the size of the main wing vs. the stab size and the distance between the main

wing's AC and the stab's AC.

The simplest way of locating the aircraft's NP is by using the areas of the two

horizontal lifting surfaces (main wing and stab) and locate the NP proportionately

along the distance between the main wing's AC point and the stab's AC point.

For example, the NP distance to the main wing's AC point would be:

D = L (stab area) / (main wing area + stab area) as shown on the picture below:

There are other factors, however, that make the simple formula above inaccurate.

In case the two wings have different aspect ratios (different dCL/d-alpha) the NP

will be closer to the one that has higher aspect ratio.

Also, since the stab operates in disturbed air, the NP will be more forward than

the simple formula predicts.

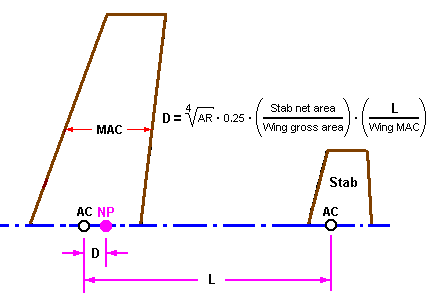

The figure below shows a somewhat more complex formula to locate the NP but

would give a more accurate result using the so called Tail Volume Ratio, Vbar.

This formula gives the NP position as a percentage (%) of the wing's MAC aft of

the wing's AC point.

For those who are not so keen on formulas and calculations there is the

Aircraft Center of Gravity Calculator, which automatically calculates the CG

location as well as other usuful parameters based on the formula above.

For Canards check the link below:

Canard Center of Gravity Calculator

For further equations on how to find the proper CG location with different wing

shapes and design configurations including Canards, check here.
